HAIJIAN 83 patrol ships (2005-2011)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 海监 50 [Haijian 50], 2013- 海警 2350 [Haijing 2350] | 50, 2013- 2350 | Wuchang, Wuhan | 7.2011 | Coast Guard 2013, in service (2019) | |||
| 海监 83 [Haijian 83], 2013- 海警 3383 [Haijing 3383] | 83, 2013- 3383 | Jiangnan, Shanghai | 8.2005 | Coast Guard 2013, in service (2019) |
Technical data
| Displacement standard, t | 3000 |
|---|---|
| Displacement full, t | 3980 |
| Length, m | 98.0 |
| Breadth, m | 15.2 |
| Draught, m | 7.80 |
| No of shafts | 2 |
| Machinery | 2 MAN 9L21/31 diesels |
| Power, h. p. | 5170 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8000(16) |
| Armament | helicopter deck |
| Electronic equipment | 2 navigation radars |
| Complement | 80 |

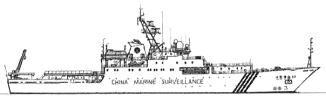

Standard scale images
Haijing 3383 2015
Project history
Patrol ships of Marine Surveillance, transferred to Coast Guard in 2013.
Modernizations
None.
Naval service
No significant events.
