4! GONGBIAN 62 patrol craft (1989-2010)

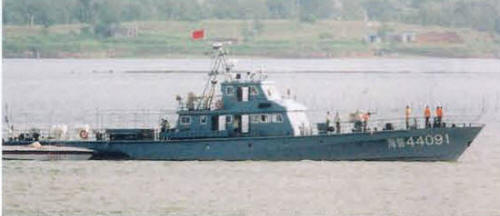

Gongbian 44091 1995
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| [Gongbian 62] | i | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| [Gongbian 178] | ii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| [Gongbian 233] | iii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| [Gongbian 44091] | iv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| v | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| vi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| vii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| viii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| ix | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| x | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xiii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xiv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xvi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xvii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xviii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xix | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xx | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxiii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxiv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 165 |
| Length, m | 28.0 |
| Breadth, m | 4.20 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 13 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(10) |
| Armament | 2 x 2 - 14.5/93 |
| Electronic equipment | radar |
| Complement | 26 |
Graphics
Gongbian 44091 1995
Project history
Modified Project 206 with greater freeboard.
Modernizations
None.
Naval service
No significant events.
