NANHUI (project 037I) large patrol craft (1987)

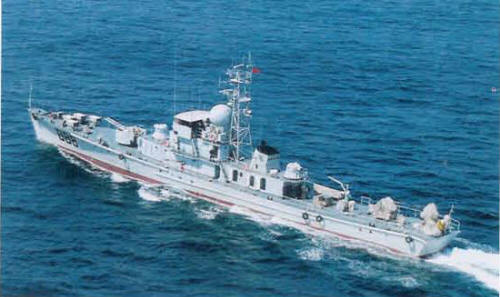

Nanhui 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 南匯 [Nanhui] | 688 | Huangpu SY, Guangzhou | 1987 | stricken 2013 | |||
| 永嘉 [Yongjia] | 693 | Huangpu SY, Guangzhou | 1987 | in service (2019) | |||
| 阮元 [Ru'an] | 694 | Huangpu SY, Guangzhou | 1987 | stricken 1995 | |||
| 安吉 [Anji] | 697 | Huangpu SY, Guangzhou | 1987 | stricken 2017 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 450 |
| Length, m | 62.0 |
| Breadth, m | 7.20 |
| Draught, m | 2.24 hull |
| No of shafts | 4 |
| Machinery | 4 diesels |
| Power, h. p. | 8800 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(18) |
| Armament | 2 x 2 - 57/62 type 66, 2 x 2 - 30/65 type 69, 4 x 5 type 87 ASWRL, 2 DCT, 2 DCR, mines |
| Electronic equipment | type 351, type 342 radars, Tamir-11 sonar |
| Complement | 70 |
Standard scale images
Yongjia 2010
Graphics
Nanhui 2008
Project history
Lengthened Type 037 with new guns.
Modernizations
1989-1990, all: - 1 x 2 - 57/62; + SS-12 VDS sonar
2000s, Nanhui: - 1 x 2 - 30/65; + 2 x 2 - 14.5/89
Naval service
No significant events.
