VALDIVIA tank landing ship (1971/1995)

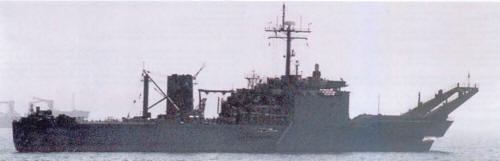

Valdivia 1999

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Valdivia (ex-San Bernandino) 93   National Steel, San Diego, USA 12.7.1969 28.3.1970 27.3.1971 // 30.9.1995 stricken 1.2011


Technical data


Displacement standard, t4975
Displacement full, t8576
Length, m

159.2 oa over hull, 171.3 oa over derrick arms

Breadth, m

21.2

Draught, m

5.30 aft 1.80 fwd

No of shafts2
Machinery

6 Alco 16-251 diesels

Power, h. p.16500
Max speed, kts

22

Fuel, t

diesel oil 1750

Endurance, nm(kts)14250(14)
Armament

1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90

Military load29 tanks or 2000 t of cargo, 385 troops, 3 LCVP, 1 LCP
Electronic equipmentSPS-64(v)9, SPS-10F radars
Complement257


Standard scale images

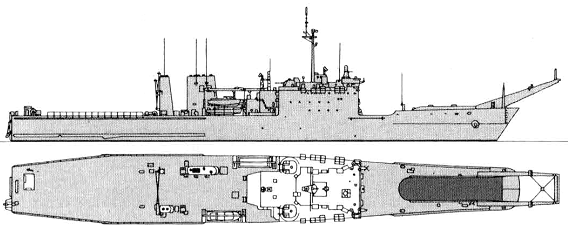

<i>Valdivia </i>2000
Valdivia 2000


Graphics


<i>Valdivia </i>1999
Valdivia 1999


Project history

Former USN Newport class LST.

Modernizations

None.

Naval service

No significant events.
