SOLDADO CANAVE small landing ship (1988/2011)

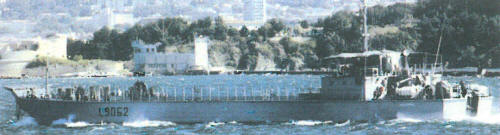

sister-ship Hallebarde 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Soldado Canave (ex-Rapière, ex-L9061) | 9101 | SFCN, Villeneuve-la-Garenne, France | 25.2.1988 | 19.10.1988 // 23.12.2011 | in service (2019) |
Technical data
| Displacement standard, t | 342 |
|---|---|
| Displacement full, t | 750 |
| Length, m | 55.5 pp 59.4 oa |
| Breadth, m | 11.9 |
| Draught, m | 1.10 hull 1.76 max |
| No of shafts | 2 |
| Machinery | 2 SACM-Wärtsilä UD30V12 M1 diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 10.5 |
| Fuel, t | diesel oil 20 |
| Endurance, nm(kts) | 1000(10) |
| Armament | 2 x 1 - 20/90 MIT-20F2, 2 x 1 - 12.7/90 |
| Military load | 336 t cargo |
| Electronic equipment | Furuno radar |
| Complement | 18 |
Graphics
sister-ship Hallebarde 2003
Project history
French CDIC class, transferred onboard the Sargento Aldea. 40.0x10.4m cargo deck.
Modernizations
None.
Naval service
No significant events.
