CAPITÁN PRAT frigates (1986/2005-2006)





Almirante Latorre 2005 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Capitán Prat (ex-Witte de With) 11 363 KM De Schelde, Vlissingen, Netherlands 15.12.1981 28.8.1984 17.9.1986 // 17.7.2006 in service (2019)
Almirante Latorre (ex-Jacob van Heemskerck) 14 362 KM De Schelde, Vlissingen, Netherlands 21.1.1981 5.11.1983 15.1.1986 // 16.12.2005 in service (2019)


Technical data


Displacement standard, t

3000

Displacement full, t

3750

Length, m

121.8 pp 130.5 oa

Breadth, m

14.6

Draught, m

4.23 hull 6.00 propellers 6.20 sonar

No of shafts

2

Machinery

COGOG: 2 Rolls-Royce Olympus TM-3B gas turbines / 2 Rolls-Royce Tyne RM-1C gas turbines

Power, h. p.

51600 / 9800

Max speed, kts

30

Fuel, t

gas turbine oil

Endurance, nm(kts)

4700(16)

Armament

2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 Standard SM-1MR SAM (40 RIM-66), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 7 - 30/77 Goalkeeper, 2 x 1 - 20/70 Mk 10, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5)

Electronic equipment

Decca 1226, Scout, ZW-06, SMART-S, LW-08, STIR-1.8, 2x STIR-2.4, Goalkeeper radars, SQS-509 (PHS-36) sonar, Sphinx, Ramses ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, SEWACO II CCS

Complement

197 + 20 flag staff



Standard scale images

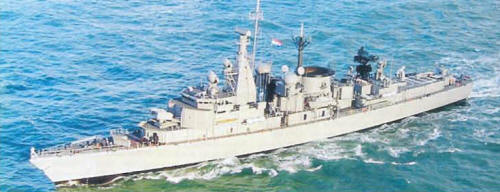

<i>Almirante Latorre </i>2010
Almirante Latorre 2010


Graphics

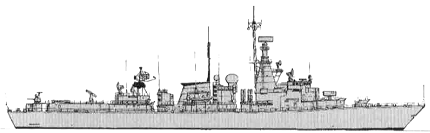

<i>Almirante Latorre</i> 2005 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Almirante Latorre 2005 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former Dutch L (Jacob van Heemskerck) class frigates.

Modernizations

2010, both: - SEWACO II CCS; + SP 21K CCS

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
