Almirante Lynch 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Almirante Cochrane (ex-Norfolk)	05		Marconi Marine (YSL), Scotstoun, UK	14.12.1985	10.7.1987	1.6.1990 // 22.11.2006	in service (2019)
Almirante Condell (ex-Marlborough)	06		Swan Hunter, Wallsend, UK	22.10.1987	21.1.1989	14.6.1991 // 28.5.2008	in service (2019)

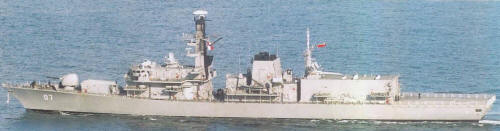

Almirante Lynch (ex-Grafton)	07		Marconi Marine (YSL), Scotstoun, UK	13.5.1993	5.11.1994	29.5.1997 // 28.3.2007	in service (2019)

Technical data

Displacement standard, t	3500
Displacement full, t	4200
Length, m	123.0 pp 133.0 oa
Breadth, m	15.0 wl 16.1 deck
Draught, m	4.30 hull 5.50 max 7.30 sonar
No of shafts	2
Machinery	05, 06: CODLAG: 2 Rolls-Royce Spey SM1A gas turbines + 4 Paxman Valenta 12RPA 200CZ diesel-generators, 2 electric motors 07: CODLAG: 2 Rolls-Royce Spey SM1C gas turbines + 4 Paxman Valenta 12RPA 200CZ diesel-generators, 2 electric motors
Power, h. p.	05, 06: 37540 + 4000 = 41540 07: 52300 + 4000 = 56300
Max speed, kts	05, 06: 28 07: 30
Fuel, t	gas turbine oil + diesel oil 800
Endurance, nm(kts)	8000(15)
Armament	05, 06: 2 x 4 Harpoon SSM (8 RGM-84C/GWS.60), 1 x 32 Sea Wolf GWS.26 Mod.1 SAM (VLS, 32 Sea Wolf GWS26), 1 x 1 - 114/55 Mk 8 Mod.1, 2 x 1 - 30/75 DES-30B, 2 x 1 - 20/90 GAM-B01, 4 - 324 DMTS90 (Stingray), 1 helicopter (Cougar) 07: 2 x 4 Harpoon SSM (8 RGM-84C/GWS.60), 1 x 32 Sea Wolf GWS.26 Mod.1 SAM (VLS, 32 Sea Wolf GWS26), 1 x 1 - 114/55 Mk 8, 2 x 1 - 30/75 DES-30B, 2 x 1 - 20/90 GAM-B01, 4 - 324 DMTS90 (Stingray), 1 helicopter (Cougar)
Electronic equipment	type 996(2), 2x type 911, type 1007, type 1008 radars, type 2050NE, type 2087 sonars, GSA.8/GPEOD Sea Archer E/O director, UAF(1) ECM suite, 4x DLB, 2x SKWS decoy RL, type 2070 torpedo decoy, DNA(1) SSCS CCS
Complement	185

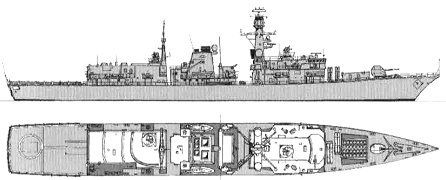

Standard scale images

Graphics

Project history

Former British Type 23 (Norfolk class) frigates.

Modernizations

2010, all: - DNA(1) SSCS CCS; + SP 21K CCS

Naval service

No significant events.
