SARGENTO ALDEA patrol vessel (1943/1971)

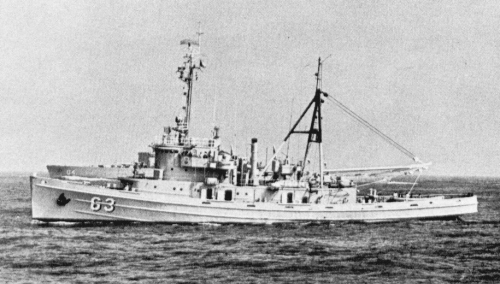

Sargento Aldea 1979
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Sargento Aldea (ex-Arikara, ex-ATF98) | 63 | Charleston SB, USA | 28.11.1942 | 22.4.1943 | 15.11.1943 // 1.7.1971 | deleted 1992 |
Technical data
| Displacement standard, t | 1235 |
|---|---|
| Displacement full, t | 1675 |
| Length, m | 59.4 wl 62.5 oa |
| Breadth, m | 11.7 |
| Draught, m | 4.67 |
| No of shafts | 1 |
| Machinery | 4 Busch-Sulzer BS539 diesel-generators, 1 electric motor |
| Power, h. p. | 3000 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil 363 |
| Endurance, nm(kts) | 15000(8) |
| Armament | 1 x 1 - 76/50 Mk 26, 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | SPS-5 radar |
| Complement | 85 |
Standard scale images
Sargento Aldea 1975
Graphics
Sargento Aldea 1979
Project history
Former USN Abnaki class fleet tug.
Modernizations
None.
Naval service
No significant events.
