CAPITÁN MERINO JARPA destroyers (1902)





Capitán Merino Jarpa

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Capitán Merino Jarpa     Laird, Birkenhead, UK   1901 1902 stricken 1924
Capitán O`Brien     Laird, Birkenhead, UK   1901 1902 stricken 1924
Capitán Thomson     Laird, Birkenhead, UK   1901 1902 stricken 1924


Technical data


Displacement normal, t321
Displacement full, t
Length, m

65.5 pp

Breadth, m

6.48

Draught, m

1.80 trials

No of shafts

2

Machinery

2 VTE, 4 Normand boilers

Power, h. p.

6250

Max speed, kts

30

Fuel, t

coal 90

Endurance, nm(kts)
Armament

1 x 1 - 76/40 Armstrong N, 5 x 1 - 57/40 Hotchkiss, 2 x 1 - 450 TT

Complement

65



Standard scale images


<i>Capitán Merino Jarpa </i>1902
Capitán Merino Jarpa 1902


Graphics

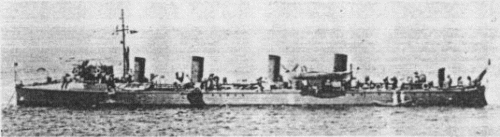

<i>Capitán Merino Jarpa</i>
Capitán Merino Jarpa


Project history

Improved version of previous class.

Modernizations

None.

Naval service

No significant events.
