ONA patrol boats (1980)

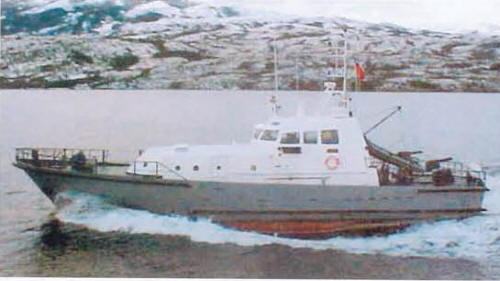

Yagan 2003
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LEP1601 Ona LEP1602 Yagan |
ASENAV, Valdivia: LEP1601, 1602 |
1980: LEP1601, 1602 |
none |
none |
2001: LEP1601, 1602 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 79 |
| Length, m | 24.6 |
| Breadth, m | 5.30 |
| Draught, m | 1.70 hull 2.90 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 6V331 TC82 diesels |
| Power, h. p. | 1320 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 415(15) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon R-84 radar |
| Complement | 5 |
Graphics
Yagan 2003
Project history
Patrol boats.
Modernizations
None.
Naval service
No significant events.
