MARINERO FUENTEALBA large patrol craft (1966-1967)
Marinero Fuentealba 1979
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Marinero Fuentealba, 1975- Castor | 75 | ASMAR, Talcahuano | 7/1966 | stricken 1999 | |||
| Cabo Odger | 76 | ASMAR, Talcahuano | 4/1967 | stricken 1999 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 215 |
| Length, m | 24.4 |
| Breadth, m | 6.40 |
| Draught, m | 2.70 |
| No of shafts | 1 |
| Machinery | 1 Cummins diesel |
| Power, h. p. | 340 |
| Max speed, kts | 9 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2600(9) |
| Armament | 1 x 1 - 20/70 Mk 4, 3 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 19 |
Graphics

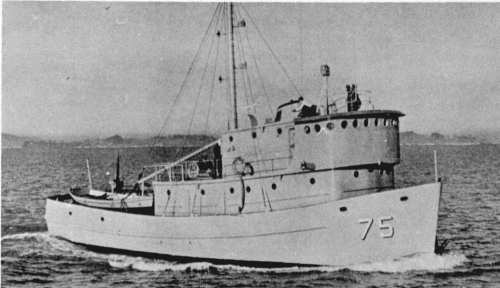

Marinero Fuentealba 1979
Project history
Fishing boat type hull.
Modernizations
None.
Naval service
No significant events.
