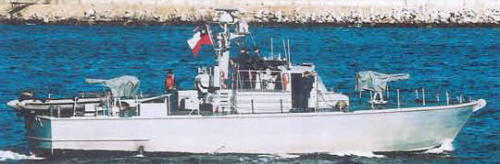

Grumete Manuel Hudson 2001

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
LPC1814 Grumete Venanzio Díaz LPC1815 Grumete Luciano Bolados LPC1816 Grumete Santiago Salinas LPC1817 Grumete Blas Segundo Tellez LPC1818 Grumete Juan Bravo LPC1819 Grumete David Campos LPC1820 Grumete Samuel Machado LPC1821 Grumete Rudicindo Troncoso LPC1822 Grumete Domingo Jonhnson LPC1823 Grumete Manuel Hudson	Israeli Aircraft Industries, Be'er Sheva, Israel: LPC1814-1823	1973-1977 // 1.1991: LPC1814-1819 1973-1977 // 3.1995: LPC1820-1823	none	none	2006: LPC1819, 1822 2012: LPC1821 2013: LPC1815, 1817, 1818 in service (2019): LPC1814, 1816, 1820, 1823

Technical data

Displacement standard, t	29
Displacement full, t	40
Length, m	19.9
Breadth, m	5.50
Draught, m	1.80
No of shafts	2
Machinery	2 General Motors 12V71TI diesels
Power, h. p.	1100
Max speed, kts	19
Fuel, t	diesel oil
Endurance, nm(kts)	450(13)
Armament	LPC1814-1816, 1819-1823: 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 LPC1817: 2 x 1 - 12.7/90 LPC1818: 1 x 1 - 12.7/90
Electronic equipment	Decca 926 radar
Complement	10

Graphics

Project history

Israeli Dabur class. Aluminium construction. Have semirigid inflatable boat aft.

Modernizations

None.

Naval service

No significant events.
