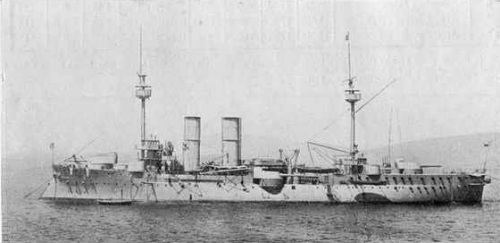

Capitán Prat 1910 with raised funnels

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Capitán Prat			F C de la Méditerranée, La Seyne, France	1889	20.12.1890	5.1893	discarded 1936

Technical data

Displacement normal, t	6901
Displacement full, t
Length, m	100.0 pp
Breadth, m	18.5
Draught, m	6.96
No of shafts	2
Machinery	2 HTE, 5 cylindrical boilers
Power, h. p.	12000
Max speed, kts	18.3
Fuel, t	coal 1100
Endurance, nm(kts)	4600(8)
Armour, mm	Creusot steel; belt: 300 - 200, ends: 150 - 100, citadel: 80, deck: 50, barbettes: 275 - 200, hoods: 50, CT: 265
Armament	4 x 1 - 240/36 Canet 23t, 4 x 2 - 120/45 Canet M1890, 6 x 1 - 57/40 Hotchkiss, 4 x 1 - 47/40 Hotchkiss, 10 x 1 - 37/20 Hotchkiss, 4 - 450 TT (1 bow, 2 beam, 1 stern)
Complement	480

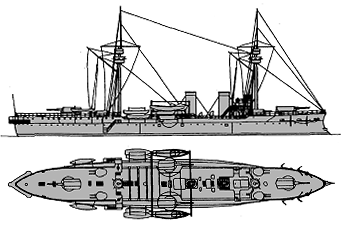

Standard scale images

Graphics

Project history

Ship had 4 single main gun turrets in a rhombic arrangement and twin secondary gun turrets. Steel-hulled, wood and copper sheathed. Fast 2nd class battleship, rather strong for her time.

Ship protection

Main complete belt extended 0.7m above and 1.4m below lwl. Above lwl amidships it was 300mm thick, tapering to 125mm fwd and 150mm aft; below lwl it reduced to 200mm, tapering to 100mm at the ends. The citadel amidships protected the engine and boiler rooms and extended to the upper deck, and was closed by 80mm bulkheads. There was 50mm deck on the belt outside the citadel.

Modernizations

(1909-1910): boilers were replaced by 12 Babcock & Wilcox (19.5kts on trials); - 4 x 1 - 47/40, 10 x 1 - 37/20, 2 - 450 TT (1 bow, 1 stern); + 4 x 1 - 57/40 Hotchkiss

Naval service

In 1931 Capitán Prat was used as temporary submarine depot ship.
