CANADIAN NAVY - CANADA

TORPEDO SHIPS

ALGONQUIN destroyers (1944)

Sioux 1944

Name No Builder Laid down Launched Comp Fate
Algonquin (ex-Valentine, ex-Kempenfelt) R17 - DDE224 John Brown, Clydebank, UK 10/1942 2/9/1943 2/1944 BU 4/1971
Sioux (ex-Vixen) R64 - DDE225 White, Cowes, UK 10/1942 14/9/1943 2/1944 BU 8/1965



Displacement standard, t

1780 - 1810

Displacement full, t

2505 - 2545

Length, m

103.5 pp 110.6 oa

Breadth, m

10.9

Draught, m

4.32 - 4.37 deep load

No of shafts

2

Machinery

Parsons geared steam turbines, 2 Admiralty 3-drum boilers

Power, h. p.

40000

Max speed, kn

36.75

Fuel, t

oil 588

Endurance, nm(kts) 4675(20)

Armament

4 x 1 - 120/45 QF Mk IX, 1 x 2 - 40/56 Bofors Mk VIII/IX, 4 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 4 - 533 TT, 4 DCT, 2 DCR (70 - 130 DC)

Sensors

presumably type 275, 277, 282, 291 radars, type 123, 127 sonars

Complement

180 - 225

Ship project history: By designing of 8 ships of "S" class, ordered in 1941, attempt considerably has been made to strengthen antiaircraft armament as at the expense of transition from 40mm quadruple pompom to the newest twin 40mm Bofors-Hazemayer MG with radar aiming, and introductions of 120mm/45 guns in mounts with elevation angle increased to 55. Shield of this mount had strongly oblique face, that together with stem fulfilled on Tribal class with bigger, than at "J" class, declination (for decrease of splashing on full speed), gave to the new ships very elegant kind. Under the design armament supplemented 4 single Oerlikons, however by the moment of the completion there was a possibility to change them on the twin MG of the same brand. At the same time, because of an availability delay, Hazemayers have not got on Scorpion and Savage on which their absence indemnified by increasing of Oerlikons number. Latter has been chosen for tests of twin 114mm DP turret mount created for "Battle" class: the first in the RN, intended for placing on so small ship as destroyer. Two single mounts of same 114mm calibre were placed aft, in order to avoid problems with supply by shells of two different types. Thus, this destroyer carried at once two new artillery systems (114mm single mounts were planed to introduce on subsequent destroyer classes).

The ships of two following classes, "" and "U", were designed on "S" class specification (difference was only in absence of the Arctic equipment). Shortage of Hazemayers has also affected: only three ships of "T" class were entered service with designed armament. Tumult was equipped with two experimental fixed torpedo tubes instead of the TT No1, soon after completion they were removed and replaced by regular TT bank.

The last 16 ships of "V" and "W" classes differed by Arctic equipment ("V" class, it is demounted early 1945) and transition to a new fire control system ("W" class). Only three of them not received Hazemayers.

Modernizations: 1945, Sioux: - 2 x 2 - 20/70; + 2 x 1 - 40/56 Bofors Mk III

1956, type 15 frigate, as follows. Ship had taken fully new silhouette, forecastle was enlarged and new aluminium alloy superstructure fitted.

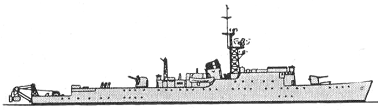

Algonquin 1965

Name No Reconstructed Yard Fate
Algonquin (ex-Valentine, ex-Kempenfelt) DDE224 1952 - 1956 Esquimalt DYd BU 4/1971



Displacement standard, t

2240

Displacement full, t

2850

Length, m

103.5 pp 109.2 oa

Breadth, m

10.9

Draught, m

4.20 - 4.30

No of shafts

2

Machinery

Parsons geared steam turbines, 2 Admiralty 3-drum boilers

Power, h. p.

40000

Max speed, kn

36.75

Endurance, nm (kts)

3000 (20) (with 476 t of oil)

Armament

1 x 2 - 102/45 Mk 19, 1 x 2 - 76/50 Mk 22, 2 x 1 - 40/60 Mk 9, 2 x 3 - 305 Limbo Mk 10 ASWRL

Sensors

type 278, 262, 293 radars, type 170, 174 sonars

Complement

195

Naval service: No significant events.

Ivan Gogin, 2015
