FIGHTING SHIPS OF THE WORLD
CAMEROON
COASTAL FORCES
JABANE patrol boats (2000)
Akwayafe 2001
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P105 Jabane P106 Akwayafe |
Rodman, Vigo, Spain: P105, 106 |
2000: P105, 106 |
none |
none |
in service (2019): P105, 106 |
Technical data
| Displacement standard, t | 46 |
|---|---|
| Displacement full, t | 64 |
| Length, m | 30.0 |
| Breadth, m | 5.99 |
| Draught, m | 1.75 |
| No of shafts | 2 |
| Machinery | 2 Detroit Diesel 16V92A diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(12) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 12 |
Graphics

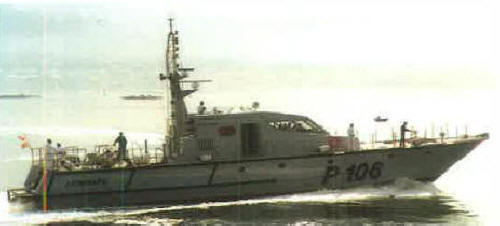

Akwayafe 2001
Project history
Rodman 101 class. GRP hull.
Modernizations
None.
Naval service
No significant events.
