BAKASSI fast attack craft (missile) (1983)

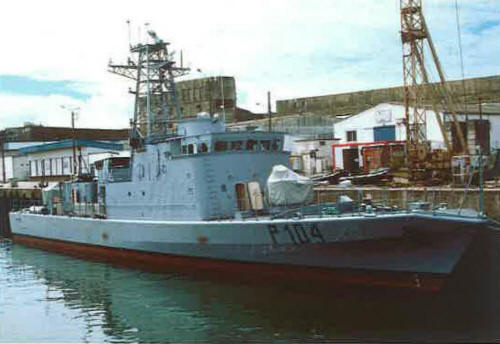

Bakassi 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Bakassi | P104 | SFCN, Villeneuve-la-Garenne, France | 16.12.1981 | 22.10.1982 | 8.10.1983 | in service (2019) |
Technical data
| Displacement standard, t | 270 |
|---|---|
| Displacement full, t | 308 |
| Length, m | 47.0 pp 50.2 oa |
| Breadth, m | 7.15 |
| Draught, m | 2.35 |
| No of shafts | 2 |
| Machinery | 2 SACM 195V16CZSHR diesels |
| Power, h. p. | 6400 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(16) |
| Armament | 2 x 4 MM40 Exocet SSM (8 MM40), 2 x 1 - 40/70 Breda-Bofors 564 |
| Electronic equipment | Decca TM1229C, Decca RM1230 radars, 2x Naja e/o systems, DR-2000S ECM suite |
| Complement | 39 |
Graphics
Bakassi 1999
Project history
French P48S design (enlarged P48). Ordered in 1980.
Modernizations
1999: - 2 x 4 MM40 Exocet SSM, Decca TM1229C, Decca RM1230 radars, DR-2000S ECM suite; + 2 x 1 - 12.7/90, 2x Furuno radars
Naval service
No significant events.
