SLAVA submarines (project 633) (1960-1961/1972-1985)

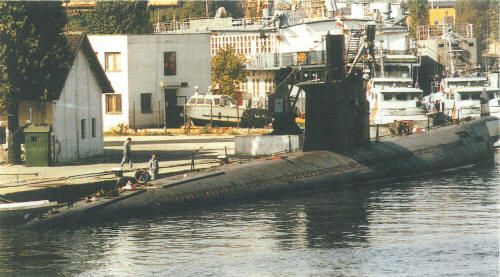

Slava 1997

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ленински Комсомол [Leninski Komsomol] (ex-С-57 [S-57]), 1980s- Победа [Pobeda] 13, 1981- 81 365 Krasnoe Sormovo, Gorkiy, USSR 23.5.1961 20.8.1961 27.12.1961 // 25.5.1972 stricken 9.1990
Димитровски Комсомол [Dimitrovski Komsomol] (ex-С-212 [S-212]), 1980s- Виктория [Viktoriya] 14, 1981- 82 353 Krasnoe Sormovo, Gorkiy, USSR 29.11.1959 31.5.1960 21.12.1960 // 5.12.1972 stricken 1992
Надежда [Nadezhda] (ex-С-36 [S-36]) 83 343 Krasnoe Sormovo, Gorkiy, USSR 29.11.1958 27.9.1959 30.9.1960 // 28.12.1985 stricken 6.2008
Слава [Slava] (ex-С-38 [S-38]) 84 345 Krasnoe Sormovo, Gorkiy, USSR 14.3.1959 30.11.1959 23.9.1960 // 20.1.1983 stricken 11.2011


Technical data


Displacement standard, t



Displacement normal, t

1330 / 1729

Length, m

76.6

Breadth, m

6.70

Draught, m

4.60

No of shafts

2

Machinery

2 37D diesels / 2 PG-101 electric motors

Power, h. p.

4000 / 2700

Max speed, kts

15.2 / 13

Fuel, t

diesel oil

Endurance, nm(kts)

7400(9.2) / 350(2)

Armament

8 - 533 TT (6 bow, 2 stern, 14 or 28 mines)

Electronic equipment

Flag radar, MG-200 Arktika-M, Tuloma, Svet-M sonars, Nakat ECM suite

Complement

58

Diving depth operational, m

240



Standard scale images


<i>Slava</i> 1980
Slava 1980


Graphics


<i>Slava </i>1997
Slava 1997


Project history

Former Soviet Project 633 medium submarines.

Modernizations

None.

Naval service

No significant events.
