POBEDA submarines (1956/1958)







Ships


Name No Yard No Builder Laid down Launched Comp Fate
С-11 Слава [S-11 Slava] (ex-С-244 [S-244]) 41   444 Nosenko Yd, Nikolayev, USSR 14.12.1955 12.4.1956 31.8.1956 // 12.9.1958 stricken 1971
С-12 Победа [S-12 Pobeda] (ex-С-245 [S-245]) 42   444 Nosenko Yd, Nikolayev, USSR 24.12.1955 20.4.1956 14.9.1956 // 12.9.1958 stricken 8.1972


Technical data


Displacement standard, t



Displacement normal, t

1045 / 1342

Length, m

76.0

Breadth, m

6.30

Draught, m

4.55

No of shafts

2

Machinery

2 37D diesels / 2 PG-101 electric motors

Power, h. p.

4000 / 2700

Max speed, kts

18.3 / 13.1

Fuel, t

diesel oil

Endurance, nm(kts)

8580(10) / 353(2)

Armament

6 - 533 TT (4 bow, 2 stern, 12 or 22 mines)

Electronic equipment

Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite

Complement

55

Diving depth operational, m

170



Standard scale images

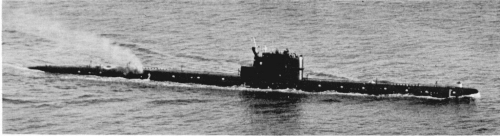

<i>Pobeda</i> 1960
Pobeda 1960


Graphics





Project history

Former Soviet Project 613 medium submarines.

Modernizations

None.

Naval service

No significant events.
