ANTON IVANOV medium landing ships (project 770MA) (1965-1967/1985)





Antares 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Антон Иванов [Anton Ivanov] (ex-...), 1992- Сириус [Sirius] 701   Stocznia Północna, Gdańsk, Poland     1965-67 // 27.12.1985 stricken 2008
Иван Загубански [Ivan Zagubanski] (ex-..), 1992- Антарес [Antares] 702, later- 301   Stocznia Północna, Gdańsk, Poland     1965-67 // 27.12.1985 stricken 2012


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Антон Иванов [Anton Ivanov] (ex-...), 1992- Сириус [Sirius] 701   Stocznia Północna, Gdańsk, Poland     1965-67 // 27.12.1985 stricken 2008 Иван Загубански [Ivan Zagubanski] (ex-..), 1992- Антарес [Antares] 702, later- 301   Stocznia Północna, Gdańsk, Poland     1965-67 // 27.12.1985 stricken 2012

Technical data


Displacement standard, t

772

Displacement normal, t

820

Length, m

73.0

Breadth, m

8.62

Draught, m

1.98

No of shafts

2

Machinery

2 40D diesels

Power, h. p.

4400

Max speed, kts

18.5

Fuel, t

diesel oil

Endurance, nm(kts)

1800(16)

Armament

1 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL

Military load

4 heavy or 5 medium tanks or 9 trucks

Electronic equipment

Donets, MR-104 Rys' radars

Complement

42



Standard scale images


<i>Anton Ivanov </i>1990
Anton Ivanov 1990


Graphics

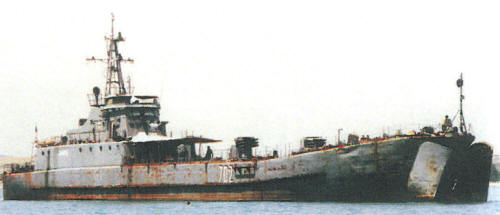

<i>Antares </i>2000
Antares 2000


Project history

Former Soviet project 770MA medium landing ships.

Modernizations

None.

Naval service

No significant events.
