NO604 small landing ships (project 106K) (1965-1970/1970, 1974-1978)





1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
- 250, 1977- 420, 1985- 703   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 2007
- 251, 1977- 421, 1985- 704   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 6.2008
- 252, 1977- 422, 1985- 705   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 6.2008
- 253, 1977- 423, 1985- 706   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 2007
- 254, 1977- 424, 1985- 707   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 6.2008
- 255, 1977- 425, 1985- 708   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 1993
- 256, 1977- 426, 1985- 709   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 1993
- 257, 1977- 427, 1985- 710   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 1993
- 258, 1977- 428, 1985- 711   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 1993
- 259, 1977- 429, 1985- 712   Kominterna SY, Kherson, USSR     1965-1970 // 1970 stricken 6.2008
  604   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  605   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  606   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  607   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  608   Burgas SYd or Ruse SYd     1974-78 to Georgia 7.2001 (გურია [Guria])
  609   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  610   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  611   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  612   Burgas SYd or Ruse SYd     1974-78 to Georgia 7.2001 (ათია [Atia])
  613   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  614   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  615   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  616   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05
  617   Burgas SYd or Ruse SYd     1974-78 civilian service 2003-05


Technical data


Displacement standard, t

460

Displacement normal, t

610

Length, m

54.5

Breadth, m

7.95

Draught, m

2.04

No of shafts

2

Machinery

2 3D12 diesels

Power, h. p.

600

Max speed, kts

10.5

Fuel, t

diesel oil

Endurance, nm(kts)

1600(9)

Armament

none

Military load

3 heavy or medium tanks or 6 - 10 trucks or 176 troops

Electronic equipmentDon radar
Complement

13



Standard scale images


<i>No421 </i>1980
No421 1980


Graphics


1978
1978

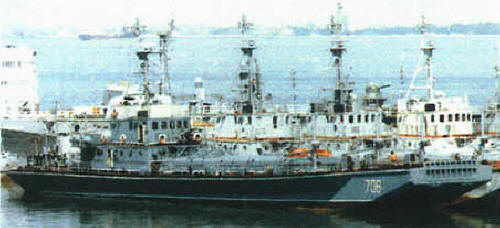

<i>No706 </i>1995
No706 1995


Project history

Soviet Project 106K. Ten ships were transferred from USSR, another 14 were built in Bulgaria.

Modernizations

1980s, some ships: + 1 x 2 - 23/83 ZU-23-2

Naval service

No significant events.
