DRZKI torpedo boats (1908-1909)





Druzki

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Дръзки [Druzki]     Schneider, Chalons-sur-Saône, France 1907 10.8.1907 1.1908 captured by USSR 9.9.1944 (TS Ингул [Ingul]), returned 7.1945, stricken 1954
Смели [Smeli]     Schneider, Chalons-sur-Saône, France 1907 10.8.1907 1.1908 foundered 19.5.1943
Храбри [Khrabri]     Schneider, Chalons-sur-Saône, France 1907 10.8.1907 1.1908 captured by USSR 9.9.1944 (TS Вычегда [Vychegda]), returned 7.1945, stricken 1954
Строги [Strogi]     Schneider, Chalons-sur-Saône, France 1907 6.4.1908 8.1909 captured by USSR 9.9.1944, returned 7.1945, stricken 1954
Летящи [Letyashchi]     Schneider, Chalons-sur-Saône, France 1907 6.4.1908 8.1909 wrecked 28.11.1918
Шумни [Shumni]     Schneider, Chalons-sur-Saône, France 1907 6.4.1908 8.1909 sunk 11.9.1916


Technical data


Displacement normal, t

97.5

Displacement full, t

?

Length, m

38.0

Breadth, m

4.40

Draught, m

1.30 mean 2.40 max

No of shafts

1

Machinery

1 VTE, 2 Normand water-tube boilers

Power, h. p.

1950

Max speed, kts

26

Fuel, t

coal 11

Endurance, nm(kts)500(16)
Armament

2 x 1 - 47/50 M1902, 1 x 2 - 450 TT (TT were directed to opposing sides), 1 - 450 TT (bow)

Complement

27 - 32

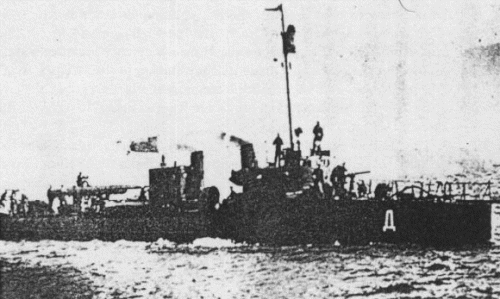

Standard scale images


<i>Druzki</i> 1914>
Druzki 1914>
<i>Smeli</i> 1942
Smeli 1942


Graphics


<i>Druzki</i>
Druzki


Project history


Standard torpedo boats of 38m type. Drzki, Khrabri and Strogi in the late 1919 were repaired with removing of TTs (on peace treaty conditions; actually since 1925 TTs were secretly temporarily installed on ships for exercises) and installation of minesweeping equipment. In the winter 1923-1924 also Smeli was commissioned again with the same armament.

Modernizations


late 1919, Druzki, Khrabri, Strogi; 1924, Smeli: - 1 - 450 TT, 1 x 2 - 450 TT; + mechanical minesweeping gear

1934, all survived: - 2 x 1 - 47/50; + 2 x 1 - 37/80 SK C/30, 1 x 2 - 450 TT

1942, all survived: - 2 x 1 - 37/80; + 2 x 1 - 47/50 M1902, DCR

Naval service


Shumni was lost on Russian mine 11.9.1916 off Varna, Letyashchi already after an armistice wrecked on rocks 28.11.1918. Druzki 15.10.1942 was sunk at Varna as a result of internal explosion, but salvaged and in 1945 commissioned again. Smeli 19.5.1943 capsized during a storm between Varna and Burgas and was lost. Druzki, Khrabri and Strogi 9.9.1944 were captured at Varna by Soviet troops, thus last two boats were commissioned by Soviet Navy as TSs Ingul and Vychegda. All three were returned to Bulgaria in July, 1945. Druzki is stored todayas a monument in Varna.
