SOZOPOL patrol craft (1969-1970/2002-2004)

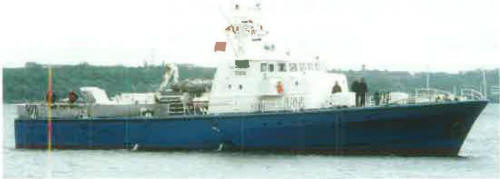

Nesebar 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Балчик [Balchik] (ex-Duderstadt) | 524 | Lürssen, Vegesack, West Germany | 2.1969 | 3.6.1969 | 1970 // 25.11.2004 | in service (2019) | |
| Созопол [Sozopol] (ex-Rosenheim) | 525 | Lürssen, Vegesack, West Germany | 1969 | 1970 | 1970 // 6.2002 | stricken 2010 | |
| Несебър [Nesebar] (ex-Neustadt) | 526 | Lürssen, Vegesack, West Germany | 11.1968 | 27.2.1969 | 11.1969 // 16.4.2004 | in service (2019) |
Technical data
| Displacement standard, t | 191 |
|---|---|
| Displacement full, t | 218 |
| Length, m | 36.0 pp 38.5 oa |
| Breadth, m | 7.00 |
| Draught, m | 2.15 |
| No of shafts | 3 |
| Machinery | 2 Maybach diesels + 1 MWM cruise diesel |
| Power, h. p. | 7200 + 685 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) | 450(27) |
| Armament | 1 x 2 - 14.5/89, 2 x 1 - 7.6/90 |
| Electronic equipment | Decca, ARP 1645 radars |
| Complement | 24 |
Standard scale images
Neustadt 1980
Graphics
Nesebar 2004
Project history
Former German Border guard craft, armament was strengthened after transfer.
Modernizations
None.
Naval service
No significant events.
