OBZOR patrol craft (2010)

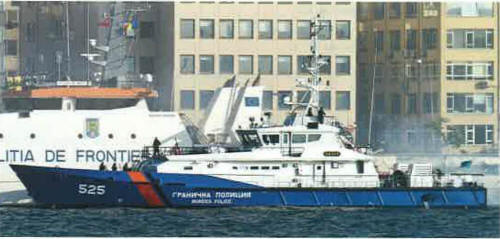

Obzor 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Обзор [Obzor] 525   Damen, Gorinchem, Netherlands     16.7.2010 in service (2019)


Technical data


Displacement standard, t
Displacement full, t205
Length, m

40.0 pp 42.8 oa

Breadth, m

6.80

Draught, m

2.50

No of shafts2
Machinery

2 Caterpillar 3516B DITA diesels

Power, h. p.

5600

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts)1800(12)
Armament

small arms

Electronic equipment2x JRC radars
Complement12


Standard scale images


<i>Obzor </i>2010
Obzor 2010


Graphics


<i>Obzor </i>2012
Obzor 2012


Project history

Damen Stan Patrol 4207 design, replacement for retired Sozopol.

Modernizations

None.

Naval service

No significant events.
