NO301 motor launches (1954-1960)
2000
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
No301-306 No401-406 No451-456 No601-606 |
Varna SYd; Ruse SYd: No301-306, 401-406, 451-456, 601-606 |
1954-1960: No301-306, 401-406, 451-456, 601-606 |
none |
none |
1985: 1 boat 1991: 3 boats 1992: 8 boats 1995-1997: 12 boats |
Technical data
| Displacement standard, t | 35 |
|---|---|
| Displacement full, t | 37 |
| Length, m | 21.0 |
| Breadth, m | 3.98 |
| Draught, m | 1.10 |
| No of shafts | 1 |
| Machinery | 1 3D6S diesel |
| Power, h. p. | 150 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 860(8) |
| Armament | 1 x 1 - 12.7/79 |
| Electronic equipment | Donets-2 or Liman radar |
| Complement | 8 |
Standard scale images

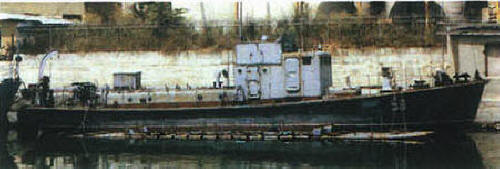

No301 1960
Graphics
2000
Project history
Soviet Project R376 boats, built under license.
Modernizations
None.
Naval service
No significant events.
