BRUNEI
AMPHIBIOUS SHIPS
SERASA landing craft (1996)

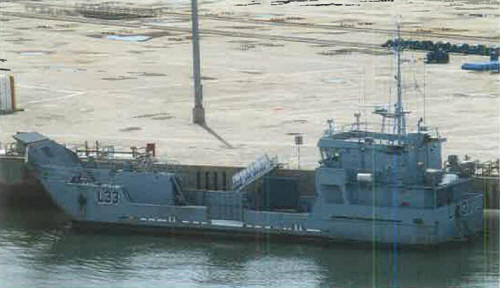

Serasa 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Serasa | L33 | Transfield, Perth, Australia | 8.11.1996 | 11/1996 | in service (2020) | ||
| Teraban | L34 | Transfield, Perth, Australia | 8.11.1996 | 11/1996 | in service (2020) |
Technical data
| Displacement standard, t | 220 |
|---|---|
| Displacement full, t | 374 |
| Length, m | 33.0 pp 36.5 oa |
| Breadth, m | 8.00 |
| Draught, m | 1.85 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3508 diesels |
| Power, h. p. | 2040 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(10) |
| Armament | 2 x 1 - 20/90 GAM-B01 (fitted for), 2 x 1 - 7.6/90 (fitted for) |
| Military load | 100 t cargo |
| Electronic equipment | Decca radar |
| Complement | 12 |
Graphics
Serasa 2010
Project history
Ordered in 1995. Bow and side ramp.
Modernizations
None.
Naval service
No significant events.
