NAKHODA RAGAM frigates

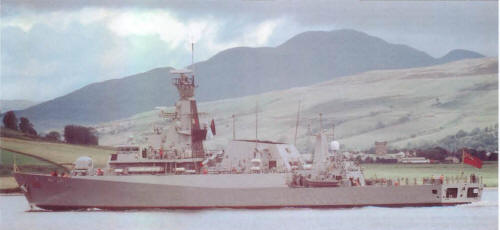

Nakhoda Ragam 2002 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Nakhoda Ragam 28 1056 BAE Systems, Scotstoun, UK 16.3.1999 13.1.2001 12/2003 // --- commissioned by Indonesia 2014 (John Lie)
Bengahara Sakam 29 1055 BAE Systems, Scotstoun, UK 15.11.1999 23.6.2001 5/2004 // --- commissioned by Indonesia 2014 (Usman Harun)
Jerambak 30 1057 BAE Systems, Scotstoun, UK 5.4.2000 22.6.2002 12/2004 // --- commissioned by Indonesia 2014 (Bung Tomo)


Technical data


Displacement standard, t

1500

Displacement full, t

2000

Length, m

89.9 pp 95.0 oa

Breadth, m

12.7

Draught, m

3.60

No of shafts

2

Machinery

4 MAN-B&W 2RK270 diesels

Power, h. p.

41070

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)

5000(12)

Armament

2 x 4 MM40 Exocet SSM (8 MM40), 1 x 16 SeaWolf GWS.26 SAM (VLS, 16 SeaWolf), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 30/75 DS-30B, 2 x 3 - 324 Mk 32 TT, helicopter deck

Electronic equipment

AWS-9, 2x type 1802SW, type 1007, Scout radars, Radamec 2500 e/o director, TMS4130C1 sonar, Cutlass 242, Scorpion, DS300 ECM suites, 2x Super Barricade decoy RL, Nautis IIF CCS

Complement

79



Standard scale images


<i>Bung Tomo </i>2015
Bung Tomo 2015


Graphics


<i>Nakhoda Ragam </i>2002 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Nakhoda Ragam 2002 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

F2000 frigates were built for Brunei but refused them as too difficult to maintenance before commission. In 2014 they were purchased by Indonesia, Sea Wolf SAM was removed before transfer.

Many thanks to Wolfgang Stöhr for additional information on this page.
