DARUSSALAM patrol ships (2011-2014)

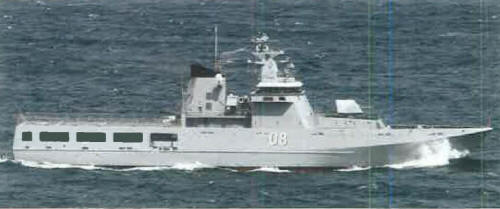

Darulaman 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Darussalam | 06 | Lürssen, Lemwerder, Germany | 3.2010 | 14.6.2011 | in service (2020) | ||
| Darulehsan | 07 | Lürssen, Lemwerder, Germany | 9.2010 | 14.6.2011 | in service (2020) | ||
| Darulaman | 08 | Lürssen, Lemwerder, Germany | 6.1.2011 | 12.12.2011 | in service (2020) | ||
| Daruttaqwa | 09 | Lürssen, Lemwerder, Germany | 24.8.2013 | 9.5.2014 | in service (2020) |
Technical data
| Displacement standard, t | 1480 |
|---|---|
| Displacement full, t | 1625 |
| Length, m | 75.0 pp 80.0 oa |
| Breadth, m | 13.0 |
| Draught, m | 3.30 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V1163 TB93 diesels |
| Power, h. p. | 11560 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7500(12) |
| Armament | 06-08: 2 x 2 MM40 Exocet SSM (8 MM40 Block III), 1 x 1 - 57/70 SAK-57 Mk 3, 2 x 1 - 20/90 GAM-B01, helicopter deck 09: 2 x 2 MM40 Exocet SSM (8 MM40 Block III), 1 x 1 - 27/63 MLG-27, 2 x 1 - 20/90 GAM-B01, helicopter deck |
| Electronic equipment | Scanter 4100, 2x Furuno, Sting EO Mk 2 radars, MEOS II e/o system, ES-3601 ECM suite, 2x SKWS DL-6 decoy RL |
| Complement | 58 + 50 passengers |
Standard scale images
Darussalam 2015
Graphics
Darulaman 2013
Project history
Lürssen OPV80 design. Ordered to replace three F2000 frigates not accepted by Brunei's government. Have a ramp for fast inspection launch aft under the helicopter deck.
Modernizations
None.
Naval service
No significant events.
