IJHTIHAD patrol craft (2009-2010)

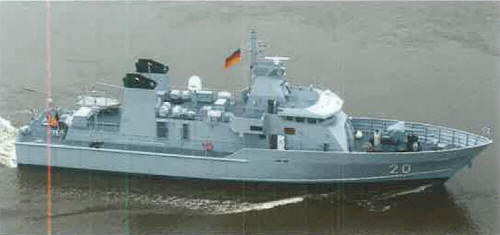

Afiat 2010

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Ijhtihad 17   Lürssen, Vegesack, Germany   2009 7/2009 in service (2020)
Berkat 18   Lürssen, Vegesack, Germany   2009 11/2009 in service (2020)
Syafaat 19   Lürssen, Vegesack, Germany   2010 2/2010 in service (2020)
Afiat 20   Lürssen, Vegesack, Germany   2010 1.5.2010 in service (2020)


Technical data


Displacement standard, t
Displacement full, t

265

Length, m

41.3

Breadth, m

7.70

Draught, m

2.60

No of shafts

2

Machinery

2 MTU 16V4000 M93L diesels

Power, h. p.

9400

Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)

1500(12)

Armament

1 x 1 - 27/63 MLG-27, 2 x 1 - 7.6/90

Electronic equipment

Furuno 2217 radar, MEOS II e/o system

Complement

16 + 5 passengers



Standard scale images


<i>Ijhtihad </i>2015
Ijhtihad 2015


Graphics


<i>Afiat </i>2010
Afiat 2010


Project history

Lürssen FPB41 design. Carry small RIB.

Modernizations

None.

Naval service

Berkat was damaged 23.2.2014 in collision with Japanese merchant vessel.
