TIKUNA submarine (2005)

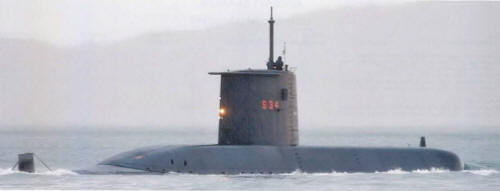

Tikuna 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Tikuna | S34 | Arsenal de Marinha do Rio de Janeiro | 12.6.1996 | 9.3.2005 | 16.12.2005 | in service (2019) | |
| Tapuia | S35 | Arsenal de Marinha do Rio de Janeiro | 1997 | --- | --- | cancelled 2004 |
Technical data
| Displacement standard, t | 1250 |
|---|---|
| Displacement normal, t | 1550 / 1690 |
| Length, m | 59.5 pp 62.0 oa |
| Breadth, m | 7.05 |
| Draught, m | 5.50 |
| No of shafts | 1 |
| Machinery | 4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor |
| Power, h. p. | 2400 / 5000 |
| Max speed, kts | 11 / 25 |
| Fuel, t | diesel oil 116 |
| Endurance, nm(kts) | 8200(8) (snorkel) / 400(4) |
| Armament | 8 - 533 TT (bow, 16 Mk 48 Mod.6) |
| Electronic equipment | Scanter radar, CSU-83/1 (DSQS-21) sonar suite, FAS-3, PRS-3/15 sonars, Argus AR-900 ECM suite, ISUS-83/13 CCS |
| Complement | 41 |
| Diving depth operational, m | 300 |
Standard scale images
similar Tupi 2000
Graphics
Tikuna 2006
Project history
Slightly larger Type 209/1400, Type 209/1450 with improved construction.
Modernizations
2011: - ISUS-83/13 CCS; + BYG-501 mod.1 CCS
Naval service
No significant events.
