Guarapari 2009

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Guarapari	L10, 1991- GED10, 1996- L10		Arsenal de Marinha do Rio de Janeiro		16.6.1977	27.3.1978	auxiliary 1991-1996, in service (2019)
Tambaú	L11, 1991- GED11, 1996- L11		Arsenal de Marinha do Rio de Janeiro		14.9.1977	27.3.1978	auxiliary 1991-1996, in service (2019)
Camboriú	L12, 1991- GED12, 1996- L12		Arsenal de Marinha do Rio de Janeiro		27.3.1978	6.1.1981	auxiliary 1991-1996, in service (2019)
Tramandaí	L13		Arsenal de Marinha do Rio de Janeiro		---	---	abandoned 1983
Itaocá			Arsenal de Marinha do Rio de Janeiro			2019	building (2019)
Itacuruça			Arsenal de Marinha do Rio de Janeiro			2019	building (2019)
			Arsenal de Marinha do Rio de Janeiro			2019	building (2019)

Technical data

Displacement standard, t	200
Displacement full, t	396
Length, m	41.0
Breadth, m	8.42
Draught, m	2.00
No of shafts	2
Machinery	2 General Motors 12V71N diesels
Power, h. p.	1000
Max speed, kts	11
Fuel, t	diesel oil
Endurance, nm(kts)	700(7)
Armament	3 x 1 - 12.7/90
Military load	172 t cargo or 120 troops
Electronic equipment	Furuno 3600 radar
Complement	6

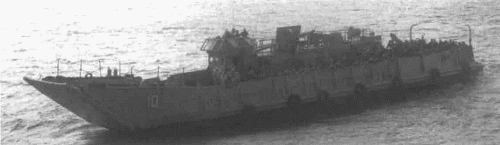

Graphics

Project history

Brazilian type EDCG (Embarcações de Desembarque de Carga Generales). Have 30.5x5.5m opened cargo deck, bow and stern ramps.

Modernizations

None.

Naval service

No significant events.
