TRAJANO screw sloop (1873)
Trajano
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Trajano, 1896- Tonelero | Arsenal de Marinha, Rio de Janeiro | 12.7.1873 | 1873 | stricken 4.1906 |
Technical data
| Displacement normal, t | 1392 |
|---|---|
| Displacement full, t | |
| Length, m | 61.0 pp |
| Breadth, m | 10.5 |
| Draught, m | 4.70 |
| No of shafts | 1 |
| Machinery | 1 HC |
| Power, h. p. | 2400 |
| Max speed, kts | 11 |
| Fuel, t | coal 120 |
| Endurance, nm(kts) | |
| Armament | 6 x 1 - 127/24 Whitworth 70pdr MLR |
| Complement | 206 |
Graphics

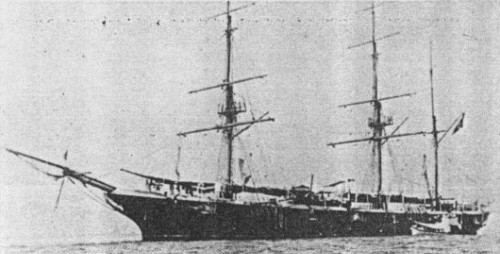

Trajano
Project history
Wooden-hulled, barque-rigged sloop with one funnel.
Modernizations
None.
Naval service
She was later classed as a second class cruiser after reconstruction 1896-6, and renamed Tonelero.
