NAVYPEDIA

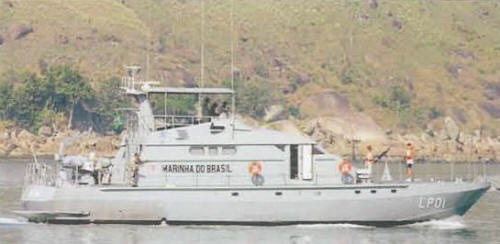

Marlim 2007

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
LP01 GptPNSE-01 Marlim LP02 GPtPNNE-04 Barracuda LP03 GptPNL-03 Dourado LP04 GptPNSE-02 Albacora LP05 GptPNNE-05 Anequim LP06 GptPNL-06 Tucunaré (ex-Pargo)	INACE, Ceará: LP01-06	2005: LP01 2009: LP02, 03 2010: LP04 2011: LP05, 06	none	none	in service (2019): LP01-06

Technical data

Displacement standard, t	40
Displacement full, t	48
Length, m	20.0 pp 22.8 oa
Breadth, m	5.50
Draught, m	1.17
No of shafts	2
Machinery	2 MTU 12V396 TB93 or 8V2000 M92 diesels
Power, h. p.	3000
Max speed, kts	27
Fuel, t	diesel oil 6
Endurance, nm(kts)	840(18)
Armament	3 x 1 - 7.6/90
Electronic equipment	GEM1210 radar
Complement	10

Graphics

Project history

Baglietto Meattini class. GRP hull.

Modernizations

None.

Naval service

No significant events.
