SHAH AMANAT utility landing ship (1980s/1990)





Shah Amanat 1996

Ships


Name No Yard No Builder Laid down Launched Comp Fate
শাহ আমানত [Shah Amanat] L900   Danyard, Frederikshavn, Denmark     1980s // 1990 in service (2020)


Technical data


Displacement standard, t
Displacement full, t

366
Length, m

47.0
Breadth, m

10.4
Draught, m

2.40
No of shafts

2
Machinery

2 Caterpillar D343 diesels
Power, h. p.720
Max speed, kts10
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

2 x 1 - 12.7/90
Military loadcargo
Electronic equipmentradar
Complement

31


Graphics

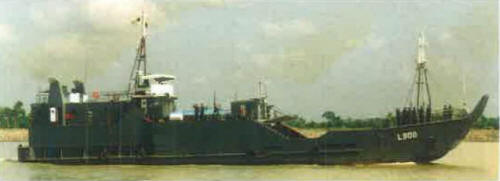

<i>Shah Amanat </i>1996
Shah Amanat 1996


Project history

Australian civil vessel confiscated by the Navy while engaged in smuggling in 1988. Resembles U.S. LCU 1466–class utility landing craft but has shorter vehicle cargo deck and longer poop deck with more extensive superstructure.

Modernizations

None.

Naval service

No significant events.
