SANDWIP utility landing craft (2015)
Sandwip 2015
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| সন্দ্বীপ [Sandwip] | L903 | Khulna SY | 1.9.2013 | 6.9.2015 | in service (2020) | ||
| হাতিয়া [Hatiya] | L904 | Khulna SY | 1.9.2013 | 6.9.2015 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | ~600 |
| Length, m | 42.0 |
| Breadth, m | 10.0 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Military load | 415 t cargo |
| Electronic equipment | radar |
| Complement | 25 |
Graphics

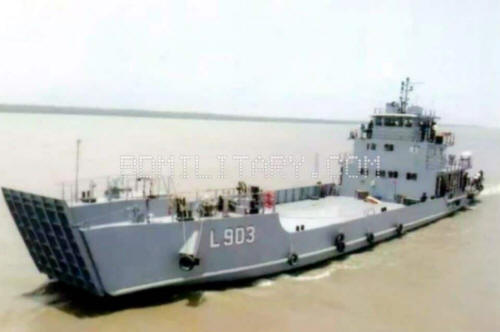

Sandwip 2015
Project history
Large LCUs. Bow ramp.
Modernizations
None.
Naval service
No significant events.
