LCT103 landing craft (2015)
LCT103 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| LCT103 | A586 | DEW, Narayanganj, Dakha | 6.9.2015 | in service (2020) | |||
| LCT105 | A588 | DEW, Narayanganj, Dakha | 6.9.2015 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 130 |
| Length, m | 25.6 |
| Breadth, m | 5.40 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 Volvo=Penta D9MH diesels |
| Power, h. p. | 420 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 1 tank, 12 troops |
| Electronic equipment | radar |
| Complement | 11 |
Graphics

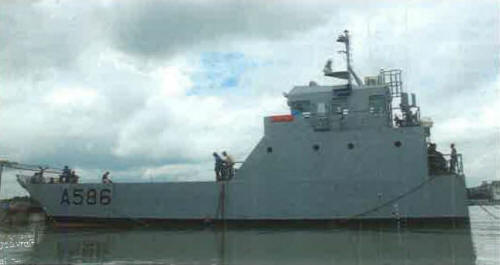

LCT103 2014
Project history
Large LCMs.
Modernizations
None.
Naval service
No significant events.
