TB35 attack hydrofoil (torpedo) (1973/1992)

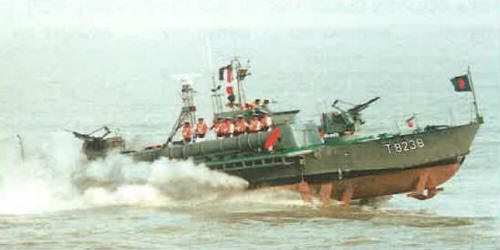

TB38 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
T8235-8238 TB35-38 (ex-HDF01 - 04) |
Hudong SY, Shanghai, China or Chuangxin SY, China: T8235-8238 |
1973 // 1992: T8235-8238 |
none |
none |
2015: T8235-8238 |
Technical data
| Displacement standard, t | 39 |
|---|---|
| Displacement full, t | 45 |
| Length, m | 22.5 |
| Breadth, m | 3.80 wl, 6.26 over foils |
| Draught, m | 1.15 propellers 1.12 over foils |
| No of shafts | 3 |
| Machinery | 3 M-50F-4 diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(30) |
| Armament | 2 x 2 - 14.5/93, 2 - 533 TT |
| Electronic equipment | Zarnitsa radar |
| Complement | 11 |
Standard scale images
HDF01 1980
Graphics
TB38 2003
Project history
Former Pakistani Chinese-built project 025 hydrofoils, transferred after 1991 cyclone.
Modernizations
None.
Naval service
No significant events.
