Karatoa 2009

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
শহীদ রুহুল আমিন [Shaheed Ruhul Amin] (ex-Jersey)	A511	971	Hall Russell, Aberdeen, UK	1975	18.3.1976	15.10.1976 // 28.1.1994	in service (2020)
কপাতাখায় [Kapatakhaya] (ex-Shetland)	P912	973	Hall Russell, Aberdeen, UK	1975	22.11.1976	14.7.1977 // 31.7.2002	in service (2020)

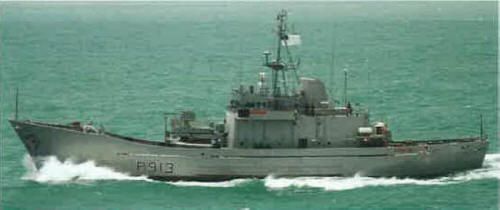

করাটা [Karatoa] (ex-Alderney)	P913	984	Hall Russell, Aberdeen, UK	11.6.1978	27.2.1979	6.10.1979 // 31.10.2002	in service (2020)
গোমতী [Gomati] (ex-Anglesey)	P914	983	Hall Russell, Aberdeen, UK	6.2.1978	18.10.1978	1.6.1979 // 10.9.2003	in service (2020)
সাঙ্গু [Sangu] (ex-Lindisfarne)	P713	975	Hall Russell, Aberdeen, UK	1976	1.6.1977	26.1.1978 // 29.1.2004	in service (2020)
তুরাগ [Turag] (ex-Guernsey)	P714	974	Hall Russell, Aberdeen, UK	14.5.1976	17.2.1977	28.10.1977 // 29.1.2004	in service (2020)

Technical data

Displacement standard, t	935
Displacement full, t	1250
Length, m	52.0 pp 59.5 oa
Breadth, m	10.9
Draught, m	4.26
No of shafts	1
Machinery	2 Ruston 12-RK 3 CM diesels
Power, h. p.	4380
Max speed, kts	18
Fuel, t	diesel oil 310
Endurance, nm(kts)	11000(12)
Armament	A511, P912-914, 714: 1 x 1 - 40/60 Mk 3, 2 x 1 - 7.6/90 P713: 1 x 1 - 40/60 Mk 3, 2 x 2 - 12.7/79
Electronic equipment	type 1006 radar, UAN(1) Orange Crop ECM suite, DEA-1 CCS
Complement	34

Standard scale images

Graphics

Project history

Former RN Island class patrol ships. Transferred unarmed. Shaheed Ruhul Amin is rated as training ship.

Modernizations

None.

Naval service

No significant events.
