DURJOY corvettes (2013-2017)
Durjoy 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| দুর্জয় [Durjoy] | P811 | Wuchang, Wuhan, China | 2011 | 26.8.2012 | 30.8.2013 | in service (2020) | |
| নির্মূল [Nirmul] | P813 | Wuchang, Wuhan, China | 2012 | 27.9.2012 | 30.8.2013 | in service (2020) | |
| দুর্গম [Durgam] | P814 | Khulna SY | 6.9.2015 | 29.12.2016 | 8.11.2017 | in service (2020) | |
| নিশান [Nishan] | P815 | Khulna SY | 6.9.2015 | 15.3.2017 | 8.11.2017 | in service (2020) |
Technical data
| Displacement standard, t | 500 |
|---|---|
| Displacement full, t | 650 |
| Length, m | 64.2 |
| Breadth, m | 9.00 |
| Draught, m | 2.50 |
| No of shafts | 3 |
| Machinery | 3 SEMT-Pielstick 12PA6 V280STC diesels |
| Power, h. p. | 16875 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 2 C-704 SSM (4 C-704), 1 x 1 - 76/59 PJ-26, 2 x 2 - 35/90 PJ-99?, 2 x 6 RDC-32 ASWRL |
| Electronic equipment | type 360, Sharp Eye, type 347G radars, ESS-1 sonar |
| Complement | 168 |
Standard scale images

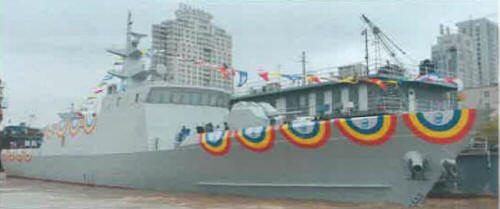

Durjoy 2015
Graphics
Durjoy 2012
Project history
Modified Chinese Houjian class.
Modernizations
None.
Naval service
No significant events.
