P101 patrol boats (1974-1982)





Tamjeed 1998

Ships


Name No Yard No Builder Laid down Launched Comp Fate
i P...   Wuzhou SY, China     1974 stricken 1985
ii P...   Wuzhou SY, China     1974 stricken 1985
শহীদ দৌলত [Shaheed Daulat] P101, 1990s- P411   Wuzhou SY, China     6.7.1980 stricken 1995
শহীদ ফরিদ [Shaheed Farid] P102, 1990s- P412   Wuzhou SY, China     6.7.1980 stricken 1995
শহীদ মহিবুল্লাহ [Shaheed Mohibullah] P103, 1990s- P413   Wuzhou SY, China     6.7.1980 stricken 1995
শহীদ আখতারুদ্দিন [Shaheed Akhtaruddin] P104, 1990s- P414   Wuzhou SY, China     6.7.1980 stricken 1995
তাওহীদ [Tawheed] P105, 1990s- P611   Wuzhou SY, China     5.1982 Coast Guard 12.1995, in service (2020)
তাওফিক [Tawfiq] P106, 1990s- P612   Wuzhou SY, China     5.1982 Coast Guard 4.2011, in service (2020)
তামজীদ [Tamjeed] P107, 1990s- P613   Wuzhou SY, China     5.1982 Coast Guard 4.2011, in service (2020)
তানভীর [Tanveer] P108, 1990s- P614   Wuzhou SY, China     5.1982 Coast Guard 4.2011, in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate i P...   Wuzhou SY, China     1974 stricken 1985 ii P...   Wuzhou SY, China     1974 stricken 1985 শহীদ দৌলত [Shaheed Daulat] P101, 1990s- P411   Wuzhou SY, China     6.7.1980 stricken 1995 শহীদ ফরিদ [Shaheed Farid] P102, 1990s- P412   Wuzhou SY, China     6.7.1980 stricken 1995 শহীদ মহিবুল্লাহ [Shaheed Mohibullah] P103, 1990s- P413   Wuzhou SY, China     6.7.1980 stricken 1995 শহীদ আখতারুদ্দিন [Shaheed Akhtaruddin] P104, 1990s- P414   Wuzhou SY, China     6.7.1980 stricken 1995 তাওহীদ [Tawheed] P105, 1990s- P611   Wuzhou SY, China     5.1982 Coast Guard 12.1995, in service (2020) তাওফিক [Tawfiq] P106, 1990s- P612   Wuzhou SY, China     5.1982 Coast Guard 4.2011, in service (2020) তামজীদ [Tamjeed] P107, 1990s- P613   Wuzhou SY, China     5.1982 Coast Guard 4.2011, in service (2020) তানভীর [Tanveer] P108, 1990s- P614   Wuzhou SY, China     5.1982 Coast Guard 4.2011, in service (2020)

Technical data


Displacement standard, t

123
Displacement full, t

135
Length, m

38.8
Breadth, m

5.41
Draught, m

1.55
No of shafts

4
Machinery

2 M-50F-4 diesels + 2 12D6 diesels
Power, h. p.

2x1200+2x910 = 4220
Max speed, kts

28.5
Fuel, t

diesel oil
Endurance, nm(kts)

750(16.5)
Armament

2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61M
Electronic equipment

type 351 or type 756 radar, Tamir-11 sonar
Complement

36


Standard scale images


<i>Shaheed Daulat </i>1980
Shaheed Daulat 1980


Graphics

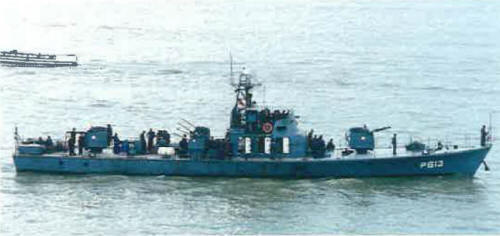

<i>Tamjeed </i>1998
Tamjeed 1998


Project history

Chinese-built type 062 boats, may be built new or transferred after Chinese naval service. ASW equipment was removed before transfer.

Modernizations

None.

Naval service

No significant events.
