BARKAT patrol boat (1996)

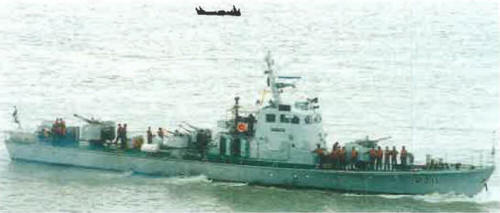

Barkat 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| বারকাত [Barkat] | P711 | Giujian SY, China | 1.1996 | in service (2020) |
Technical data
| Displacement standard, t | 150 |
|---|---|
| Displacement full, t | 170 |
| Length, m | 41.0 |
| Breadth, m | 5.41 |
| Draught, m | 1.80 |
| No of shafts | 4 |
| Machinery | 4 L12-180Z diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(16) |
| Armament | 2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 81 |
| Electronic equipment | type 726UA radar, Tamir-11 sonar |
| Complement | 28 |
Standard scale images
Barkat 2000
Graphics
Barkat 1998
Project history
Chinese project 062/I, simplified version of type 062.
Modernizations
None.
Naval service
No significant events.
