TEMES river monitors (1904)

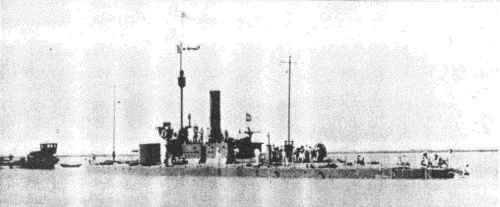

Temes 1914 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Temes   902 Schoenichen, Újpest 1/1903 26/3/1904 11/1904 to Yugoslavia 12/1918 (Дрина [Drina])
Bodrog   903 Schoenichen, Újpest 2/1903 12/4/1904 8/1904 to Yugoslavia 4/1920 (Сава [Sava])


Technical data


Data variantas completed Temes 7/1917
Displacement normal, t

442

470

Displacement full, t

486

520

Length, m

57.7 oa 55.6 pp

60.3

Breadth, m

9.50

9.50

Draught, m

1.20

1.20

No of shafts

2

2

Machinery

2 VTE, 2 Yarrow boilers

2 VTE, 2 Yarrow boilers

Power, h. p.

1400

1400

Max speed, kts

13

13

Fuel, t
Endurance, nm(kts)500(9.5) 500(9.5)
Armour, mm

side: 40, deck: 25, CT: 75

side: 40, deck: 25, CT: 40

Armament

2 x 1 - 120/33 G. L/35 K.04, 1 x 1 - 120/8 Haub. L/10, 2 x 1 - 37/42 C.1900V, 3 x 1 - 8/80

2 x 1 - 120/33 G. L/35 K.04, 2 x 1 - 90/42 G. L/45 K.12 TAG/BAG, 2 x 1 - 47/40 L/44 (Skoda), 2 x 1 - 8/80

Complement

Bodrog: 86

Temes: 89

89



Standard scale images


<i>Temes</i> 1917
Temes 1917
<i>Bodrog</i> 1904
Bodrog 1904


Graphics


<i>Temes </i>1914 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Temes 1914 Many thanks to Wolfgang Stöhr for additional information on this page.


Ship project history


Development of the Körös class.

Ship protection


Machinery had 40mm vertical and 25mm horizontal protection.

Modernizations


1900s: - 2 x 1 - 37/42; + 1 x 1 - 66/16 G. L/18

7/1917, Temes was recommissioned 7/1917 with data as given in the table.

Naval service


Temes was mined and sunk E of Sabac on the Sava River 23/10/1914. She was raised in June 1916 and repaired at Budapest, being recommissioned in July 1917. Bodrog 31/10/1918 ran ashore at Visnitsa, was interned and entered Yugoslavian Danube flotilla, Temes was interned some later. 15/4/1920 by results of division of Austro-Hungarian fleet she was officially transferred to Yugoslavia and renamed Sava. Drina (ex-Temes) was transferred to Romania.

Many thanks to Wolfgang Stöhr for additional information on this page.
