MÖWE gunboat (1859)
Möwe as gunboat
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Möwe | Venice | 1857 | 18.9.1858 | 1859 | sail TS 1886, stricken 1903 |
Technical data
| Displacement normal, t | 348 |
|---|---|
| Displacement full, t | |
| Length, m | 45.0 |
| Breadth, m | 7.20 |
| Draught, m | 3.20 |
| No of shafts | 1 |
| Machinery | 1 HSE |
| Power, h. p. | 50 |
| Max speed, kts | 7 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 160/14 30pdr SBML |
| Complement | 48 |
Graphics

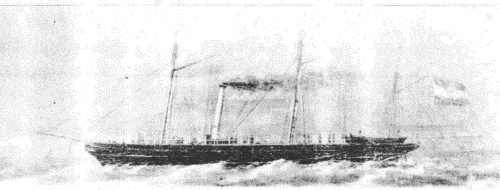

Möwe as gunboat

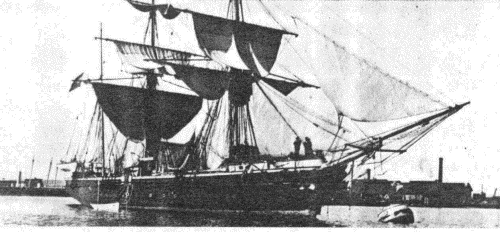

Möwe 1888 as sailing TS
Project history
Screw gunboat. First screw ship of K.u.K. Kriegsmarine.
Modernizations
1884-1886: engine was removed (sails only)
Naval service
In 1884-1886 Möwe was rebuilt to sail TS, in 1903 stricken, in 1905 hulked and BU in 1907.
