XI torpedo boats (1883-1886)





XXII

Ships


Names Builders Completed Losses Transfers Discarding

XI - XXVI

Marinearsenal Pola: XI - XXVI

1883: XIII, XIV

1884: XV - XVII

1885: XI, XII, XVIII - XXI, XXV, XXVI

1886: XXII - XXIV

none

none

1904: XIII, XIV, XIX, XXV

1907: XI, XII, XVII, XVIII

1909: XV, XVI, XX - XXIV, XXVI



Technical data


Displacement normal, t

47

Displacement full, t55
Length, m

34.3

Breadth, m

3.80

Draught, m

1.70

No of shafts

1

Machinery

1 VC, 1 locomotive boiler

Power, h. p.

600

Max speed, kts

18 - 19

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 37/20 SFK L/23 H, 2 - 356 TT (bow)

Complement

16



Standard scale images


<i>XI </i>1883
XI 1883

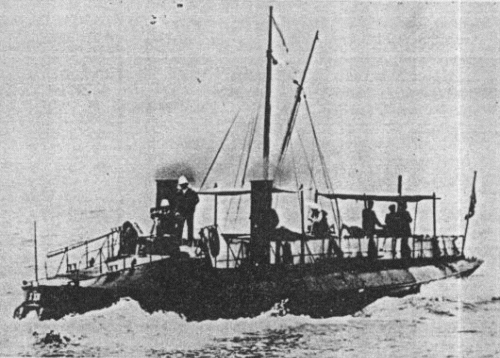

Graphics


<i>XXII</i>
XXII


Project history

Copies of Yarrow-built Russian Batum built in series. II-class, B-type.

Modernizations

1904, XVIII, XX - XXIII; 1905, XVI, XXIV; 1907, XXVI: - 2 - 356 TT; + light gun

Naval service

No significant events.
