SEBENICO torpedo ship (1882)

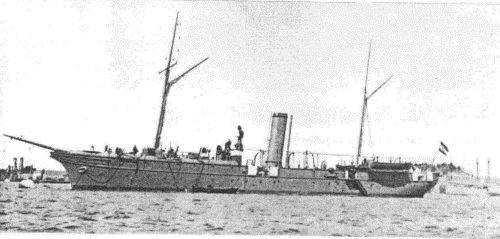

Sebenico 1905

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sebenico     Marinearsenal Pola 11/1880 28.2.1882 12/1882 TS 1903, to Italy 1920


Technical data


Displacement normal, t

883

Displacement full, t890
Length, m

69.7

Breadth, m

8.20

Draught, m

3.40

No of shafts2
Machinery2 VC, 4 locomotive boilers
Power, h. p.

1344

Max speed, kts

12.8

Fuel, t

coal 200

Endurance, nm(kts)800(11)
Armament

4 x 1 - 87/22 G. L/24 M.75, 1 x 1 - 66/16 G. L/18, 2 x 5 - 25/41 Nordenfelt, 1 - 350 TT (bow)

Complement135


Standard scale images


similar <i>Zara </i>1881
similar Zara 1881


Graphics


<i>Sebenico </i>1905
Sebenico 1905


Project history

Officially classified as "torpedo ship".

Modernizations

1901: boilers were replaced by 4 cylindrical

1903: - 4 x 1 - 87/22, 2 x 5 - 25/41, 1 - 350 TT; + 2 x 1 - 120/37 G. L/40 SC.96, 4 x 1 - 47/40 SFK L/44 S, 4 x 1 - 47/30 SFK L/33 H, 4 x 1 - 37/20 SFK L/23 H, 2 x 1 - 8.80

Naval service

From 1903 Sebenico served with the gunnery training school, from 1914 as a guardship and from 1918 as tender of the torpedo training school at Pola.
