KAISERIN UND KÖNIGIN MARIA THERESIA armoured cruiser (1894)





Kaiserin und Königin Maria Theresia Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Kaiserin und Königin Maria Theresia   271 STT, San Rocco 6.10.1891 29.4.1893 11/1894 accommodation ship 2.1917


Technical data


Displacement normal, t

5330

Displacement full, t6026
Length, m

113.7 oa 111.7 wl

Breadth, m

16.3

Draught, m

6.81

No of shafts

2

Machinery

2 3-cyl HTE, 10 cylindrical boilers

Power, h. p.

9000

Max speed, kts

19

Fuel, t

coal 746

Endurance, nm(kts)3500(10)
Armour, mmHarvey; belt: 100, turrets: 100, casemates: 80, deck: 60 - 40, CT: 50
Armament

2 x 1 - 238/32 G. L/35 C.86, 8 x 1 - 149/33 G. L/35 K.86 apt., 2 x 1 - 66/16 G. L/18, 12 x 1 - 47/40 SFK L/44 S, 6 x 1 - 47/30 SFK L/33 H, 4 x 1 - 8.80, 4 - 450 TT (1 bow, 2 beam, 1 stern)

Complement

475



Standard scale images

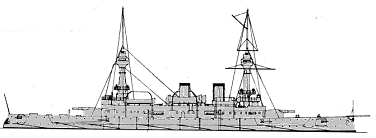

<i>Kaiserin und Königin Maria Theresia </i>1894
Kaiserin und Königin Maria Theresia 1894


Graphics

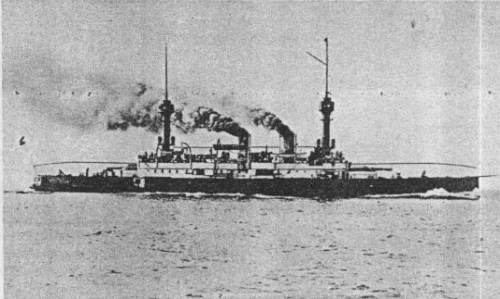

<i>Kaiserin und Königin Maria Theresia</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Kaiserin und Königin Maria Theresia Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

The executive committee of the Austro-Hungarian Navy, the Marine-sektion, agreed with foreign navies in their estimate of the high value of a modern type armoured cruiser which could perform some of a battleship's duties. In addition the success of the two light cruisers of the Kaiserin Elisabeth class persuaded the authorities to build an improved successor with more displacement, heavier armament and heavier armour. Five British yards were asked to tender designs: Cammell Laird, Vickers-Armstrong, Fairfield, Napier (Glasgow) and Thomson. However, eventually the first ship, officially designated as 'torpedo-ram-cruiser C' was ordered at STT to give work to the Austrian yard personnel.

Kaiserin und Königin Maria Theresia was originally planned with six 15cm and fourteen 47mm, but the number of guns was increased during construction.

Ship protection

The belt was 100mm. Main guns barbettes had up to 100mm protection, 15cm guns were protected by 80mm casemates. There was 60-40mm protective deck. CT had 50mm sides.

Modernizations

1910: - 2 x 1 - 238/32, 4 x 1 - 47/30; + 2 x 1 - 190/40 G. L/42, 4 x 1 - 37/42 C.1900V

Naval service

She was disarmed 31.1.1917, decommissioned 7.2.1917 and served as an accommodation ship for German submarine crews. Her guns were transferred to the Italian front.

Many thanks to Wolfgang Stöhr for additional information on this page.
