KAISER centre battery ship (1873)





Kaiser 1865

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Kaiser     Marinearsenal Pola 25.3.1855 5.10.1858 1859 hulk 1902


Technical data


Data variantas completed modernization 1873
Displacement normal, t

5194


Displacement full, t  5720
Length, m

74.0 pp 81.0 oa

77.8 wl

Breadth, m

16.2

17.8

Draught, m

7.90

7.37

No of shafts

1

1

Machinery

1 2-cyl HSE

1 2-cyl HRCR, 4 rectangular boilers

Power, h. p.

800

2786

Max speed, kts

12

11.5

Fuel, t

coal

coal 440

Endurance, nm(kts)  1520(10)
Armour, mm ---

wrought iron; belt: 152 - 102, casemates: 140, deck: 18

Armament

16 x 1 - 160/17 60pdr SBML, 74 x 1 - 160/11 30pdr SBML

10 x 1 - 229/15 Armstrong 12-ton MLR, 6 x 1 - 106/17 L/19.4 M.63 RML

Complement

904

471



Standard scale images

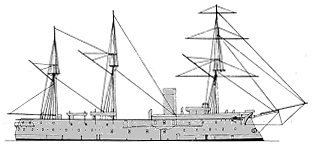

<i>Kaiser </i>1890
Kaiser 1890


Graphics

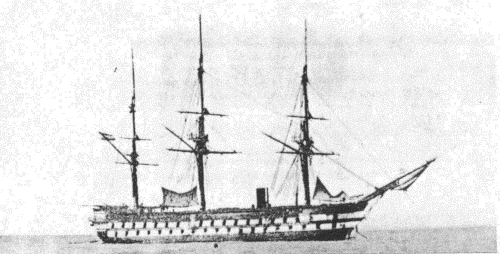

<i>Kaiser </i>1865
Kaiser 1865

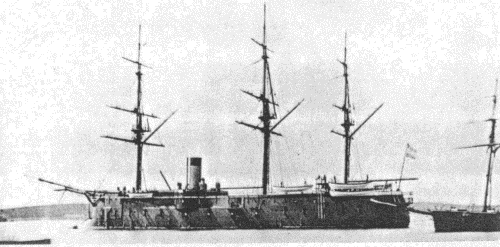

<i>Kaiser </i>after reconstruction
Kaiser after reconstruction


Project history

Wooden 92-gun screw ship of the line. In 1869 an inspection of the old 91-gun ship of the line showed that the framing was in good condition. She was docked on 2.2.1869 and wooden planks were renewed, she was given a new bow and stem, and the hull above water was rebuilt in iron. She emerged as a casemate ship similar to Lissa. She retained her old machinery but had superheaters to obtain more power.

Modernizations

early 1860s: armament consisted of 2 x 1 - 149/18 G. L/21 M.61 (MLR), 16 x 1 - 177/16 40pdr SBML, 74 x 1 - 160/11 30pdr SBML

(2/1869-12/1873): ship was rebuilt as central battery ironclad with data as given in the table:

Ship protection after modernization

The belt was 152mm amidships and 102mm fore and aft, it was backed by 787mm wood and extended from 1.7m under wl. Casemate over the belt was protected by 140mm sides and 127mm transverse bulkheads on the 711mm wooden back, it was also closed by 18mm deck.

Later modernizations

1882: - 6 x 1 - 106/17; + 6 x 1 - 87/22 G. L/24 M.75, 2 x 1 - 66/16 G. L/18

1885: + 3 - 350 TT (1 bow, 2 beam)

1890s: + 4 x 1 - 47/30 SFK L/33 H, 3 x 5 - 47/22 SFK L/25 H, 4 x 5 - 25/41 Nordenfeldt

Naval service

In 1902 Kaiser was renamed Bellona and became an accommodation hulk. She remained at Pola until the end of the First World War and was transferred to Italy for BU in 1920.
