RUSHCUTTER inshore minehunters (1986-1987)

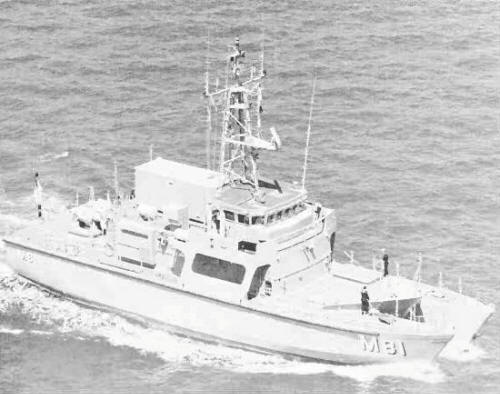

Shoalwater 1987

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Rushcutter

M80



Carrington Slipways, Tomago

31.5.1984

8.5.1986

1.11.1986

stricken 8.2001

Shoalwater

M81



Carrington Slipways, Tomago

17.9.1985

26.6.1987

10.10.1987

stricken 8.2001



Technical data


Displacement standard, t

100

Displacement full, t

170

Length, m

28.0 wl 31.0 oa

Breadth, m

9.00

Draught, m

1.90

No of shafts

2 Schottel azimuthal pods

Machinery

2 SACM-Poyaud 520-V8-S2 diesel-pumps, 2 hydraulic motors

Power, h. p.

340

Max speed, kts

10

Fuel, t

diesel oil

Endurance, nm(kts)1200(10)
Armament

2 x 1 - 12.7/90, 2x PAP-104 USV, Mini-Dyad magnetic minesweeping gear

Electronic equipment

M80: type 1006 radar, MWS-80-5 (DSQS-11M) sonar

M81: type 1006 radar, Ibis V sonar

Complement

13



Graphics


<i>Shoalwater </i>1987
Shoalwater 1987


Project history

Tenders for two prototype glass-reinforced plastic (GRP) catamaran minehunters were sought in April 1981 and orders were placed in January 1983. It was hoped to order four more (Westernport, Discovery, Esperance, Melville) following trials and evaluation but the hull proved too small for coastal work and severe problems were encountered with the sonar, so the project was stopped. In 1991 Thomson Sintra leased its Ibis V system for trials in Shoalwater, and early in 1992 Atlas Elektronik installed their new DSQS-11M in Rushcutter for competitive trials. The German sonar passed acceptance and was retrofitted to Shoalwater.

Modernizations

late 1980s, Shoalwater: - Ibis V sonar; + MWS-80-5 (DSQS-11M) sonar

Naval service

No significant events.
