TENIENTE OLIVIERI patrol vessel (1981/1987)

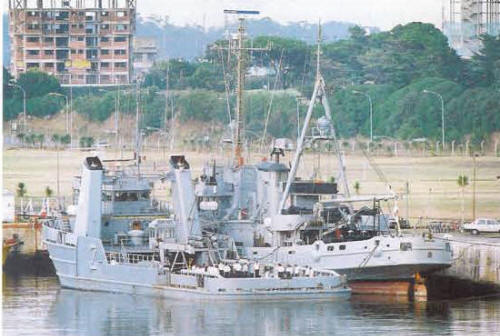

Teniente Olivieri 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Teniente Olivieri (ex-Marsea 10) A2   Quality SB, Moss Point, USA     1981 // 15.11.1987 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

1640

Length, m

56.3

Breadth, m

12.3

Draught, m

4.30

No of shafts

2

Machinery

2 General Motors EMD 16-645EZ diesels

Power, h. p.

3230

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)

2800(10)

Armament

2 x 1 - 12.7/90

Electronic equipment

2x radars

Complement

16



Standard scale images


<i>Teniente Olivieri </i>2000
Teniente Olivieri 2000


Graphics


<i>Teniente Olivieri </i>2000
Teniente Olivieri 2000


Project history

Purchased from the US MarAd 15.11.1987 and delivered in May 1988 as "aviso". Can carry 610t cargo on the 35.1x9.3m open deck, also can carry 600t of cargo oil fuel or 800t of water.

Modernizations

None.

Naval service

No significant events.
