MANDUBI patrol craft (1940)

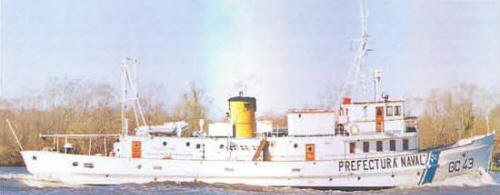

Mandubi 1994
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Mandubi | GC43 | Arsenal de Río Santiago | 1940 | in service (2019) | |||
| Robalo | GC45 | Arsenal de Río Santiago | 1940 | deleted 1986 |
Technical data
| Displacement normal, t | 208 |
|---|---|
| Displacement full, t | 270 |
| Length, m | 33.2 |
| Breadth, m | 4.00 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 MAN 6V23-5/33 diesels |
| Power, h. p. | 880 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3400(10) |
| Armament | 2 x 1 - 12.7/90 |
| Complement | 12 |
Graphics
Mandubi 1994
Project history
Tug-type vessels.
Modernizations
1970s: + Decca radar
Naval service
No significant events.
