PUNTA MOGOTES patrol craft (1970/1999-2000)

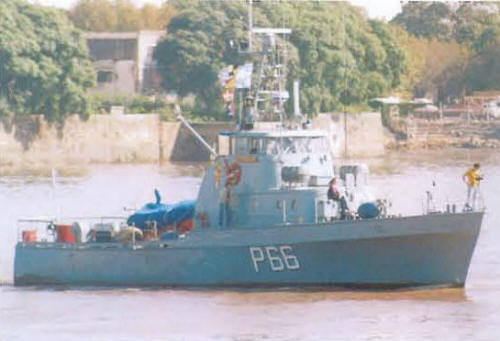

Río Santiago 2007

Ships


Names Builders Commissioned Losses Transfers Discarding

P65 Punta Mogotes (ex-Point Hobart)

P66 Río Santiago (ex-Point Carrew)

USCG Yard, Curtis Bay, USA: P65, 66

7.1970 // 7.1999: P65

5.1970 // 8.2000: P66

None

None

in service (2019): P65, 66



Technical data


Displacement standard, t

64 trials

Displacement full, t

69

Length, m

25.3

Breadth, m

5.20

Draught, m

1.80

No of shafts

2

Machinery

2 Caterpillar 3412V12 diesels

Power, h. p.

1600

Max speed, kts

22.6

Fuel, t

diesel oil

Endurance, nm(kts)

1200(8)

Armament

2 x 1 - 12.7/90

Electronic equipmentSPS-64(v)1 radar
Complement

10



Standard scale images


<i>Punta Mogotes </i>2010
Punta Mogotes 2010


Graphics


<i>Río Santiago </i>2007
Río Santiago 2007


Project history

Former USCG boats of Point class.

Modernizations

None.

Naval service

No significant events.
